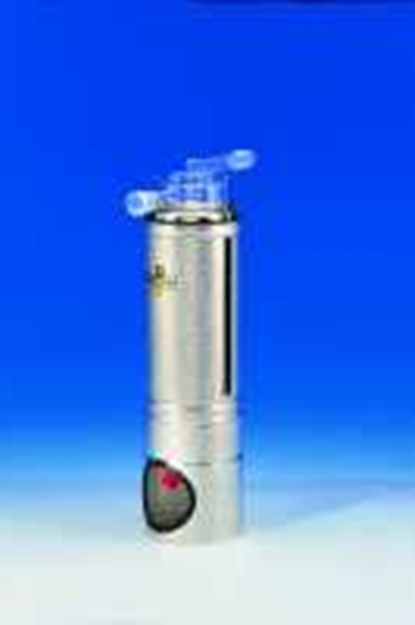

TYPE GKF – COLD TRAP
Applications
- gas cleaning by condensation e.g. in vacuum systems
Advantages
- made of Borosilicatglass 3.3
- good chemical resistance
- good thermal resistance
- deliverable:
- Type GKF:
- aluminium foot (Standard)
- all around protection
- with special joints:
- e.g. – small flange KF NW 25
- olive
- DN flange 15-25
- Type GKS: incl.4-foot base (special design)
- Type GKF:
Construction Details
- two condensation walls, cooled by liquid nitrogen ( LN2 )
- integrated Dewar flask
- viewing stripes for observation of the condensation process
- condensate outlet with O – ring sealing
- protecting cover made of aluminium
- coolant capacity : ca. 1100 ml
- condensate capacity : ca. 250 ml
- joints:
- to pump : ground cone NS 29
- to plant : socket NS 29

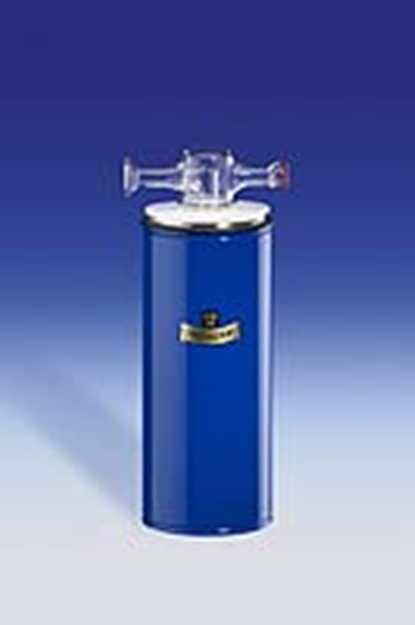

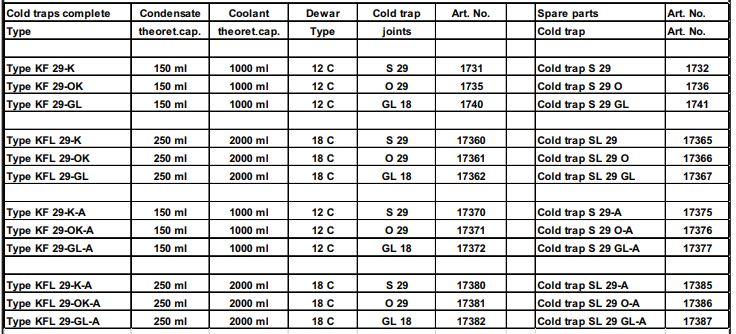

TYPE KF – 29-K – COLD TRAP
TYPE KF-29-0K – COLD TRAP
TYPE KF29-GL
TYPE KF29-GL-A
