CIRCULATED WATERBATHS
TANK
TR-H
TR-E
CIRCULATORS
FEATURES
Universal mounting clamp for clamping to the rim of virtually any tank or bridge plate to straddle tank (factory standard).* Dual ventilation system.
* Adjustable pump output control lever, 30 to 100% of flow rate.
* Pump nozzle can be rotated to reach remote corners in vessel
(screw drive required)*
High grade stainless steel pump and housing – cover aluminium.*
minimum tank depth 160mm* Digital Timer –TRE only *
CAT NO | DESCRIPTION |
TR-H | Thermostatic Control range ambient +5ºC (min +30ºC) to +100ºC |
TR-HC | Thermostatic Control range -10ºC to +10ºC , NO COOLING, NO HEATING |
TR-E | Micro Processor PID controller amb +5ºC to +150ºC 1,0 Kw |
With cooling -35ºC to +150ºC. – Cooling not included | |
high temperatures may need the optional 1,5Kw heating element. | |
Control accuracy +/- 0,2ºC | |
Digital temperature indicator and setpoint | |
Audio/Visual over temperature alarm | |
Digital Timer – max 9999 minutes (approx. 7 days) | |
Offset calibration function |
OPTIONAL
CAT NO | DESCRIPTION |
Z645 | External circulation pipe assembly |
Z647 | Boil dry safety cutout thermostat (factory fitted) |
EL-15 | Heating element 1,5Kw (factory fitted) |
TANKS
FEATURES
Stainless Steel Grade 304 fabricated inner tank
Glass wool Insulated housing * Tank depth 200mm *
CAT NO | DESCRIPTION | ||
TNK 15 | Nominal 13 Lit | Brim 18 Lit | Internal: 300 W x 300 L x 200 D mm |
TNK 24 | Nominal 18 Lit | Brim 24 Lit | Internal: 300 W x 400 L x 200 D mm |
TNK 34 | Nominal 25 Lit | Brim 34 Lit | Internal: 300 W x 550 L x 200 D mm |
TNK 40 | Nominal 30 Lit | Brim 40 Lit | Internal: 300 W x 710 L x 200 D mm |
LIDS
CAT NO | DESCRIPTION |
LDG 15 | Gabled lid with handle |
LDG 24 | Gabled lid with handle |
LDG 34 | Gabled lid with handle |
LDG 40 | Gabled lid with handle |
HEIGHT REDUCER
CAT NO | DESCRIPTION |
HR 15 | Height Reducer 42 mm H |
HR 24 | Height Reducer 42 mm H |
HR 34 | Height Reducer 42 mm H |
HR 40 | Height Reducer 42 mm H |

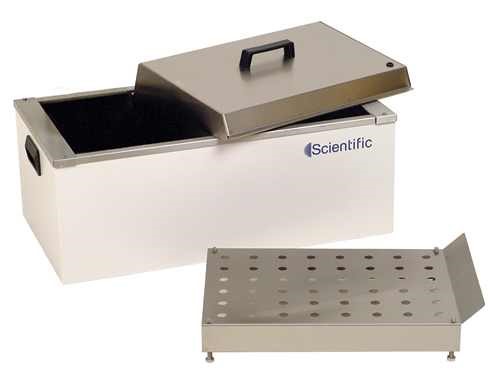

CIRCULATED WATERBATHS
FEATURES
Circulated Seamless Water baths are made up of a combination of an insulated water tank Model IT Model – 11 & 22, & circulators Model CPH 110, CPM 100, CPM 200 as well as optional extras such as lids & height reducers, specified below
TANKS
Insulated Seamless Water Tanks feature the following:-
- Interior Type 304 Stainless Steel tank
- Exterior epoxy coated mild steel housing
- 25mm fiberglass insulation
- Optional extras are: gabled stainless steel lid stainless steel
height reducer
TANKS
CAT NO | BRIM | NOMINAL | INTERNAL (LxWxH) |
IT 12 | 12 Lit | 12 Lit | 240 x 290 x 195 mm |
IT 18 | 25 Lit | 18 Lit | |
IT 22 | 22 Lit | 22 Lit | 495 x 290 x 195 mm |
IT 25 | 34 Lit | 25 Lit |
LIDS
CAT NO | DESCRIPTION |
FOR 12 Lit | |
FOR 25 Lit | |
FOR 22 Lit | |
FOR 34 Lit |
HEIGHT REDUCER
CAT NO | DESCRIPTION | ||
FOR 25 Lit | STANDARD | ||
FOR 25 Lit | ADJUSTABLE | ||
FOR 34 Lit | STANDARD | ||
FOR 34 Lit | ADJUSTABLE |
CIRCULATORS
Circulators for use in Insulated Watertanks Model IT
Circulators feature the following:-
- Exterior epoxy coated aluminium cover
- Internal stainless steel circulation pump
- Corrosion resistant incaloy sheathed element
- Hydarulic temperature control thermostat for Type CPH
- Microprocessor controller with PT 100 input sensor and
- zero crossing triac output for Type CPM
CAT NO | TEMP CONTROL | CONTROL RANGE | |
CPH 110 | HYDRAULIC THERMOSTAT | RANGE +30°C TO 110°C, ACCURACY ±1.5°C | |
CPM 100 | DIGITAL CONTROL | RANGE AMBIENT 0°C TO 100°C, ACCURACY ±0.2°C | |
CPM 200 | DIGITAL CONTROL | RANGE AMBIENT 0°C TO 200°C, ACCURACY ±0.2°C |
CIRCULATED WATERBATHS

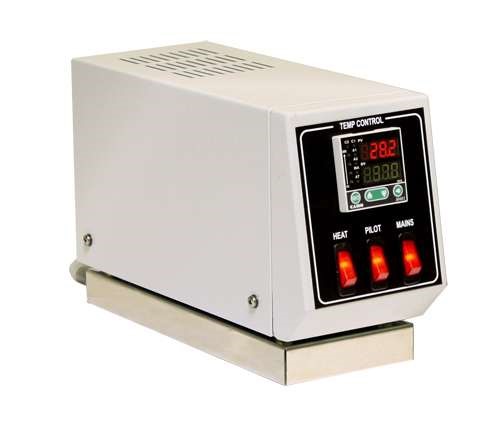

CIRCULATORS
FEATURES
Powerful circulation pump to ensure uniform temperature distribution within the bath
Suitable for pumping low viscosity media such as water
Rear panel mounted safety fuse.
High quality,incolloy immersion heating element
Body parts are manufactured from epoxy coated steel
Separate main switch,control pilot light and heat switch
External pump port capable of pumping 6 litres p/min @ 1M head
Ideal for applications where a high degree of accuracy is required.
Electronic P.I.D temperature control with digital indication of set and process value
High accuracy pt 100 temperature sensor
Solid state control relay for optimum reliabilty
Float switch safety prevents damage to the heating element in the event of a low water level in the waterbath
CAT NO | TEMP |
103 | 7+100 |
TANKS
FEATURES
All bodies are constructed from corrosion protected mild steel with an epoxy powder coated finish
Inner tanks are manufactured from grade 316 stainless steel for exceptional corrosion resistance
Optional gabled lids and height reducers manufactured from grade 304 stainless steel
All height reducers easily adjustable
Specially designed gable lid to ensure no direct dripping of condensate into samples
TANKS
CAT NO | VOL | INTERNAL (WxHxD) |
130 | 14 Lit | 225 x 200 x 300 mm |
132 | 34 Lit | 560 x 200 x 300 mm |
132A | 40 Lit | 710 x 200 x 300 mm |
LIDS
CAT NO | DESCRIPTION |
139 | Stainless Steel Gabled Lid for 34 Litre Bath |
139A | Stainless Steel Gabled Lid for 40 Litre Bath |
139C | Stainless Steel Gabled Lid for 14 Litre Bath |
HEIGHT REDUCER
CAT NO | DESCRIPTION |
136 | Waterbath Height Reducer Adjustable 50 – 90mm for 34 Litre Bath |
136A | Waterbath Height Reducer Adjustable 50 – 90mm for 40 Litre Bath |
136C | Waterbath Height Reducer Adjustable 50 – 90mm for 14 Litre Bath |
