WS-4000
FEATURES
Stainless steel water still with low-water and overheating cut-out. 230V
Distillate flow rateaprox 4 l/hC
Specification | WS 4000 |
---|---|
Conductivity of distilled water (20 °C) | aprox 1,5 µS/cm |
Heater: | 3 KW |
Cooling water: | approx. 60 l. |
Material: Inner part | Stainless steel |
Material: Outer part | Stainless steel & powder coating |
Switch | Main power with pilot lamp |
Sealing | Silicone gasket |
Safety | Low water level & over heating cut-off |
CODE | DESCRIPTION |
BOE 8703600 | WS 4000 Stainless steel water stiller, 220V |
BOE 8704500 | WS 4000 Stainless steel water stiller, 220V WITH TANK |
WS-8000
FEATURES
Stainless steel water still with low-water and overheating cut-out. 230V
Specification | WS 8000 |
---|---|
Distillate flow rate | approx 7,5-8 l/h |
The conductivity of distilled water (20 °C) | approx 1,5 µS/cm |
Heater: | 6 KW |
Cooling water: | approx. 84 l. |
Material: Inner part | Stainless steel |
Material: Outer part | Stainless steel 6 powder coating |
Switch | Main power with pilot lamp |
Sealing | Silicone gasket |
Safety | Low water level & overheating cut-off |
CODE | DESCRIPTION |
BOE 8707500 | WS 8000 Stainless steel water stiller, 220V |
BOE 8708000 | WS 8000 Stainless steel water stiller, 220V WITH TANK |
TANK 4000 / 8000
FEATURES
For bench and wall mounting. Supplied with wall mounting bracket. Excellent quality of distillation. An electronic level switch switches the still off when the storage tank is full and restarts it automatically when distilled water is withdrawn. Dispenser Tap of distilled water.
With the flow regulator to avoid excessive water consumption.
Specification: | Tank 4000 | Tank 8000 |
---|---|---|
Distillate flow rate: | approx 4 l/h | approx 8 l/h |
Water tank capacity: | 8 l. | 16 l. |
Cond. of dist water (20°C): | approx 1,5 µS/cm | approx 1,5 µS/cm |
Power: | 3000 W | 6000 W |
Cooling water: | approx. 55 l/h | approx 80 l/h |
Material: Inner part: | Stainless steel | Stainless steel |
Outer part: | Galvanized steel & powder coating | Galvanized steel & powder coating |
Switch: | Main power with pilot lamp | Main power with pilot lamp |
Safety: | Low water level & over heating cut-off | Low water level & over heating cut-off |
Size (wxdxh): | 620 x 330 x 460 mm | 720 x 350 x 700 |
Weight: | approx 24 kg | approx 36 kg |

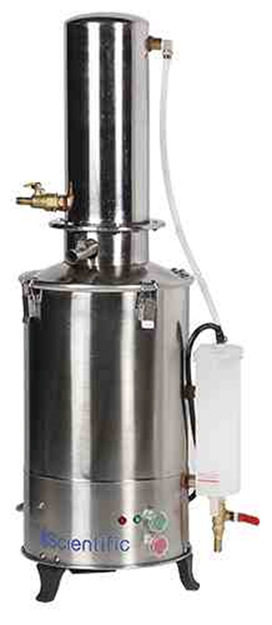

WATERSTILL
FEATURES
For indoor use only
Ambient temperature range +5ºC to +40ºC
Relative humidity conditions:
80% RH for temperatures up to 31ºC decreasing linearly to
50% RH at 40ºC
Safety cut out in the event of low water
Easy access for cleaning and de-scaling
CAT NO | VOL | EXTERNAL (WxHxD) | |
405 | 5 Lit | WITH TANK | 330 x 240 x 730 mm |
406 | 10 Lit | 350 x 270 x 830 mm | |
407 | 20 Lit | WITH TANK | 380 x 380 x 980 mm |
WATERSTILL
FEATURES
Waterstills are robustly constructed from 304 Stainless Steel ensuring a long service life. The exterior is finished in a durable chemical resistant coat with a textured finish. Corrosion resistant incaloy sheathed heating elements of a low watts density ensure long element life. All Labcon Waterstills are fitted with a preset safety cut out thermostat. This safety device protects the elements and chamber from possible damage in the event of water failure.
Model WSO1 is without storage tank. Distillate is continuously produced (while stilling requirements are met) and discharged directly from the condensing head via the outlet pipe.
The process is a single distilation one. Conductivity will vary depending on the chemical composition of the water prior to distillation. Tests conducted on water with a conductivity of approximately 205mS/cm @ 20°C prior to distillation, evidenced a conductivity of approximately 8 mS/cm @ 20°C after distilation.
CAT NO | VOL. | EXTERNAL (WxDxH) |
WS 01-02 | 2 Lit /Hr | 235 x 180 x 380 mm |
WS 01-04 | 4 Lit /Hr | 200 x 200 x 500 mm |
WS 01-08 | 8 Lit /Hr | 370 x 320 x 610 mm |
WS 01-20 | 20 Lit /Hr | 470 x 360 x 770 mm |
WS 01-30 | 30 Lit /Hr | 510 x 410 x 800 mm |

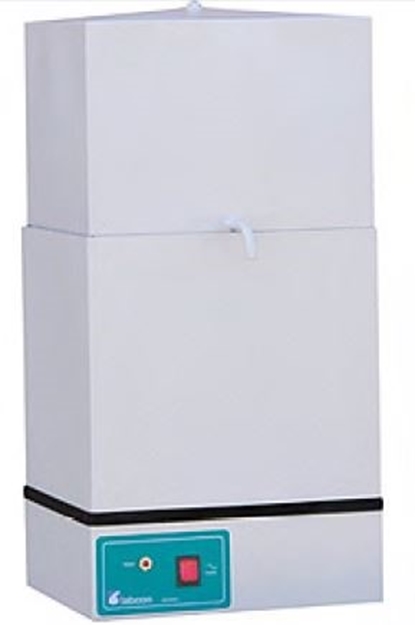

WATERSTILL WITH STORAGE TANK
FEATURES
Waterstills are robustly constructed from 304 Stainless Steel ensuring a long service life. The exterior is finished in a durable chemical resistant coat with a textured finish. Corrosion resistant incaloy sheathed heating elements of a low watts density ensure long element life. All Labcon Waterstills are fitted with a preset safety cut out thermostat. This safety device protects the elements and chamber from possible damage in the event of water failure.
Model WSO2 comes complete with built-in Stainless Steel storage tank. The “full” level is controlled by an electronic level switch which cuts power to the elements once the “lull” level is reached and “on” when distillate is drawn from the storage tank.
The process is a single distilation one. Conductivity will vary depending on the chemical composition of the water prior to distillation. Tests conducted on water with a conductivity of approximately 205mS/cm @ 20°C prior to distillation, evidenced a conductivity of approximately 8 mS/cm @ 20°C after distilation.
CAT NO | VOL. | EXTERNAL (WxDxH) |
WS 02-04 | 4 Lit /Hr | 430 x 340 x 560 mm |
WS 02-08 | 8 Lit /Hr | 500 x 410 x 640 mm |
WS 02-20 | 20 Lit /Hr | 650 x 510 x 810 mm |
WS 02-30 | 30 Lit /Hr | 700 x 560 x 850 mm |
